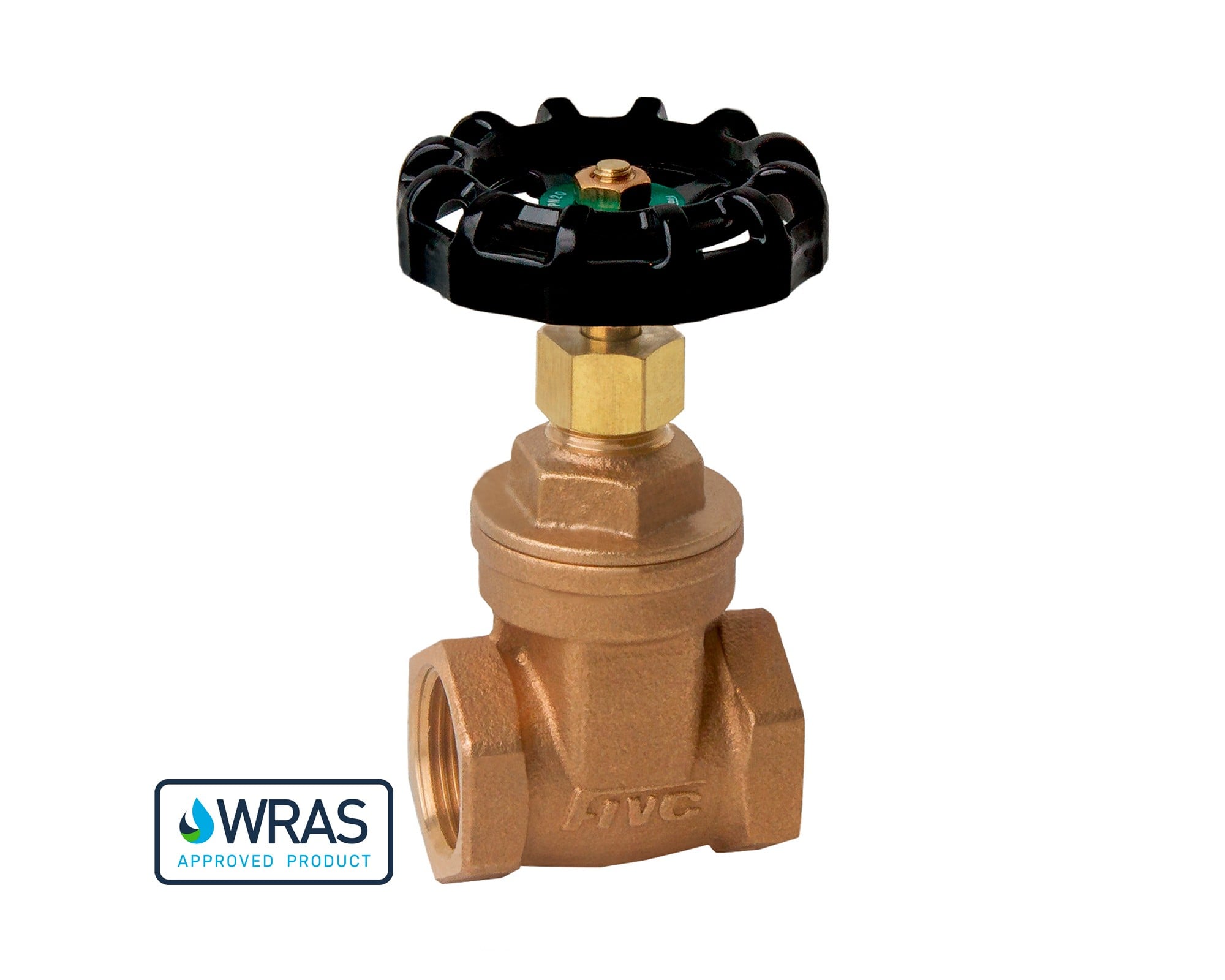

FIVC GATE VALVE
FGA_O20_NS75 - Bronze – PN 20 – Screwed Bonnet – Non-Rising-Stem – WRAS – ISO 228
The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- WRAS-approved
- Minimum pressure loss
- Longer lifetime
- Slow operation; Prevents the water hammer phenomenon
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF by wheel rotation
Model: Non-rising-Stem
Standard: BS 5154
Bonnet: Screwed
Thread: ISO 228
USP: WRAS approved. Excellent tightness. Minimum pressure loss.
MAIN MATERIALS
Body: Bronze CC491K
Bonnet: Bronze CC491K
Wedge: Bronze CC491K
Stem: DZR Brass CZ132A
Packing: PTFE
FIELD OF APPLICATION
Temperature range: -10 to 85 °C
Max. working pressure: 20 bar / 7 bar at 170 °C
Media: Potable Water
DECLARATION
A sound engineering practice (SEP) inspection and testing have been performed on this product. In accordance with European PED Directive No 2014/68/EU, dated 15/05/2014, the product is not required to be CE marked (Cf. Article 4.3).
WRAS approved.
