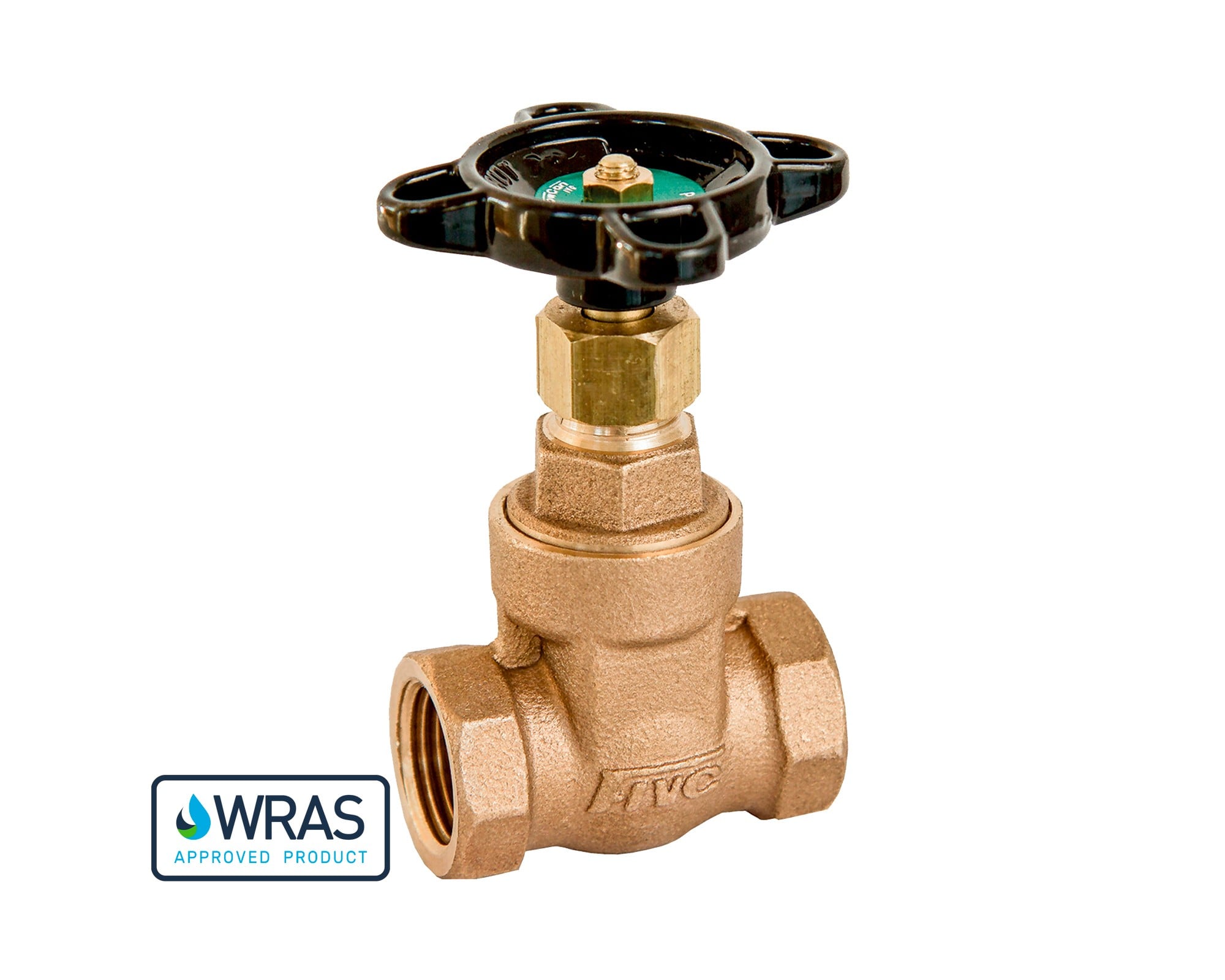

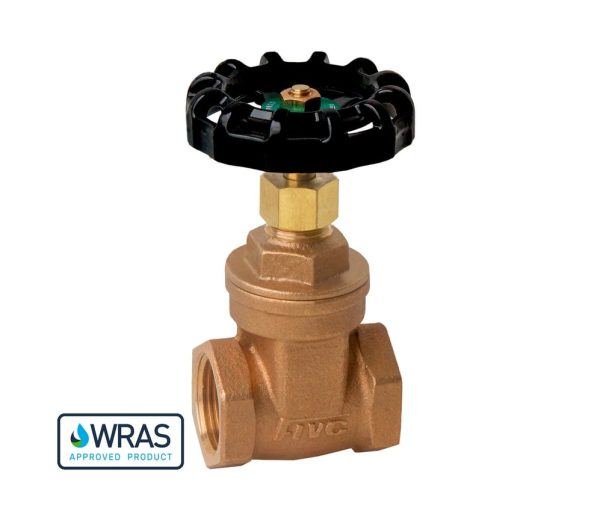

FIVC GATE VALVE

FGA_O20_NS22​ – Bronze - PN 20 - NRS - WRAS - ISO 228

The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
This gate valve is suitable for Drinking Water, Oil, and Gas, and is WRAS-approved.
FGA_O20_NS22
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Manual operated ON/OFF by wheel rotation
Model: Non-rising-Stem
Bonnet: Screwed
Thread: BSPP/ ISO 228
Design: BS EN 5154
USP: WRAS approved. Excellent tightness. Minimum pressure loss.

MAIN MATERIALS

Asset-7

Body: Bronze CC491K
Bonnet: Bronze CC491K
Wedge: Bronze CC491K
Stem: DZR Brass CW602N
Seat: Integral seat

FIELD OF APPLICATION

Asset-7

Max. temperature: 170 °C
Max. working pressure: 20 bar
Media: Drinking water

DECLARATION

Asset-7

A sound engineering practice (SEP) inspection and testing have been performed on this product. In accordance with European PED Directive No 2014/68/EU, dated 15/05/2014, the product is not required to be CE marked (Cf. Article 4.3).

WRAS approved.
Drinking-water-5

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

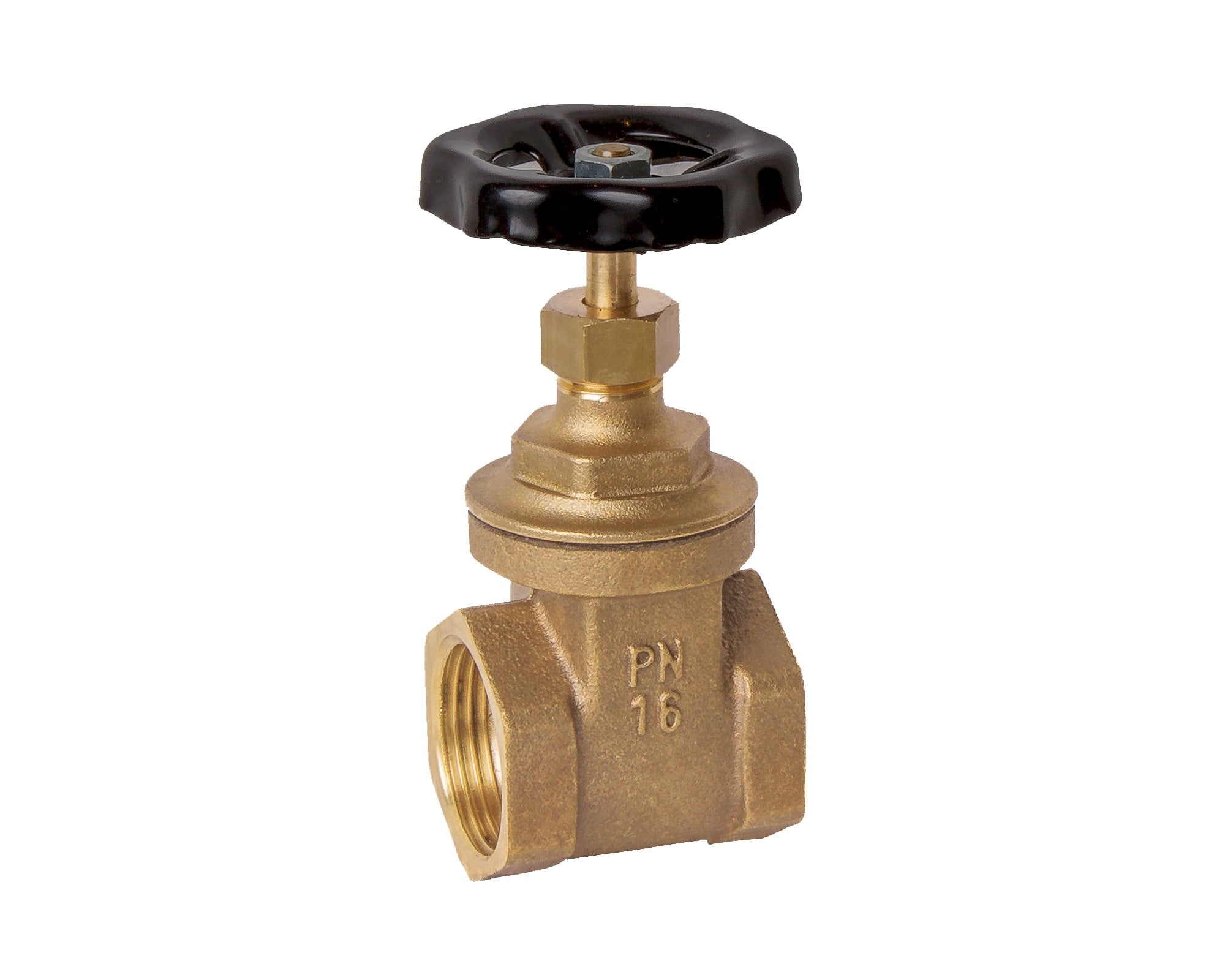

Bronze – PN 16 – NRS
Bronze – PN 20 – NRS – WRAS

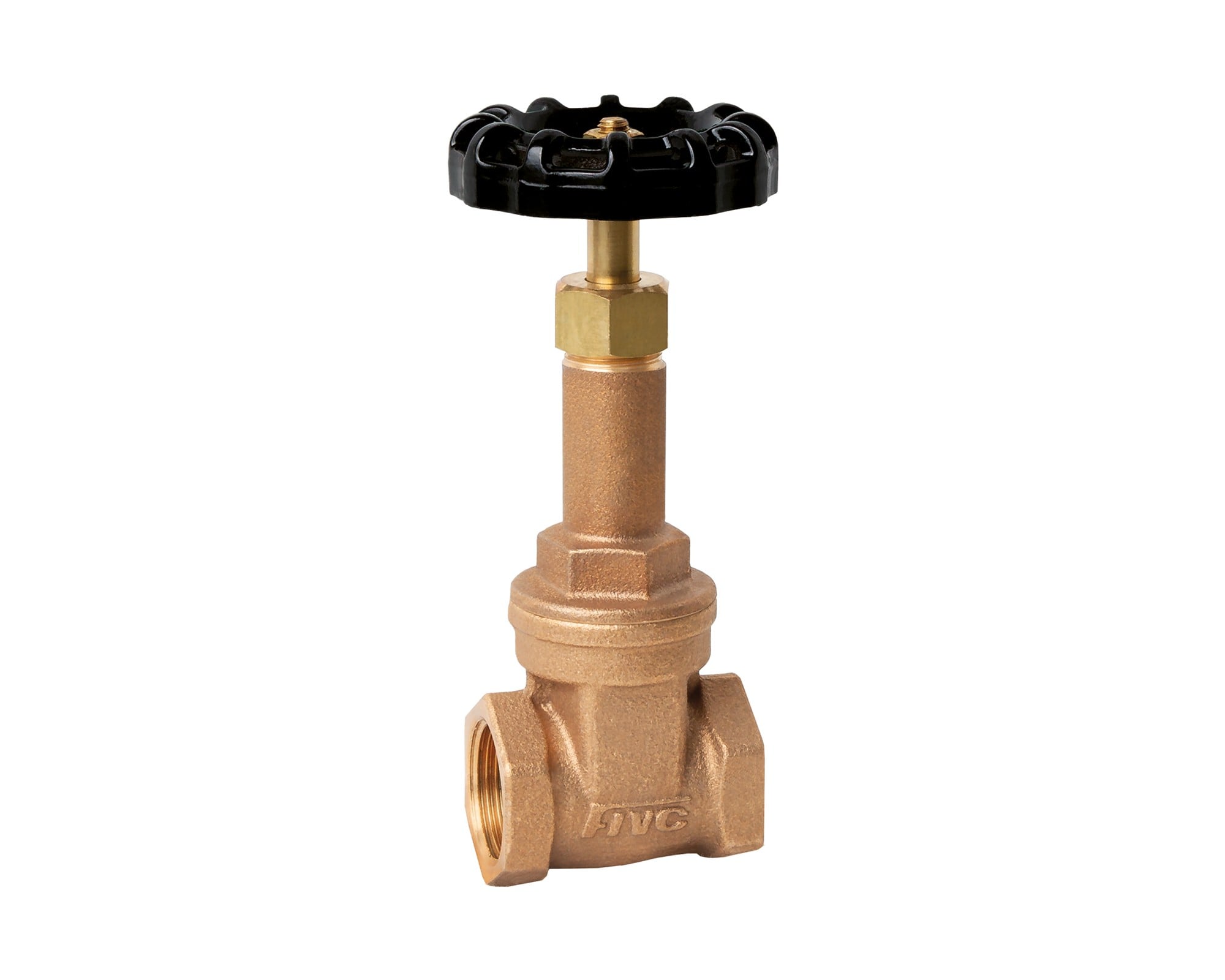

Bronze – PN 16 – RS
