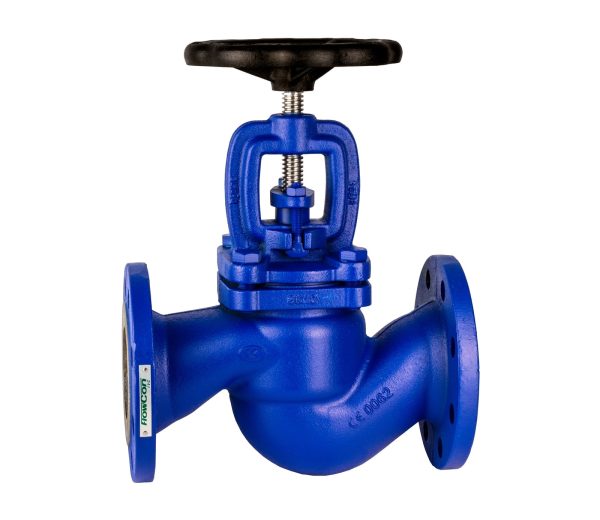

FIVC GLOBE VALVE
FGL_C16_RB04 – Grey Cast Iron – PN 16 – Rising Stem – EN 1092-2
FIVC Globe Valves are designed as spherical valves to be installed in pipelines for isolating and regulating purposes. They are primarily used to ensure dependable throttle and shutoff functions in throttling flow applications.
Benefits of using the globe valves include their shut-off as well as throttling capability.
The slow opening and closing operation require multiple turns of the handwheel, which prevents the occurrence of a water hammer.
This globe valve is suitable for water, steam, and neutral fluids.
Benefits of using the globe valves include their shut-off as well as throttling capability.
The slow opening and closing operation require multiple turns of the handwheel, which prevents the occurrence of a water hammer.
This globe valve is suitable for water, steam, and neutral fluids.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent shut-off
- Slow operation; prevents water hammer incidents
- Cost-, maintenance-, and installation efficient
- Excellent throttling capability
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF and throttling by wheel rotation.
Flange: EN 1092-2 PN 16
Standard: Design acc. to DIN 3356
Dimensions: Face-to-Face acc. to EN 558-1 (series 1)
Leakproofness test: Class A acc. to EN -12266 – 1
USP: High tightness. Reliable. Prevents the occurrence of a water hammer. Short stroke.
MAIN MATERIALS
Body: Grey Cast Iron
Bonnet: Grey Cast Iron
Disc: Stainless Steel
Stem: Stainless Steel
Handwheel: Ductile Iron
FIELD OF APPLICATION
Temperature range: -10 to 300 °C
Max. working pressure: 16 bar
Media: Water, steam, and neutral fluids
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No 2014/68/EU, Module H, dated 15/05/2014, and is CE marked.
