FIVC LUGGED BUTTERFLY VALVE
LUGN4_MDVEPV_2529 – Ductile Iron body – Alu-Bronze disc – PN 25 – Lugged – Gearbox – Vulcanized – w/Pin – EN 1092-2
This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges. Butterfly valves with lug-style flanges and vulcanized seats can be used for end-of-line services as well as center-services.
It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.
This valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Center-service
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 25
Shaft: SS AISI 431
Thread: Metric
Seat: Vulcanized
Construction: With pin
External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558 (series 20)
Inspection test: BS EN 12266-1
USP: Dead-end service/Center service. Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Alu-Bronze
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Vulcanized EPDM
Gearbox: Ductile Iron
Coating: RAL 5015 (thickness 250 microns)
FIELD OF APPLICATION
Temperature range: -15 to 120° C
Max. working pressure: 25 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

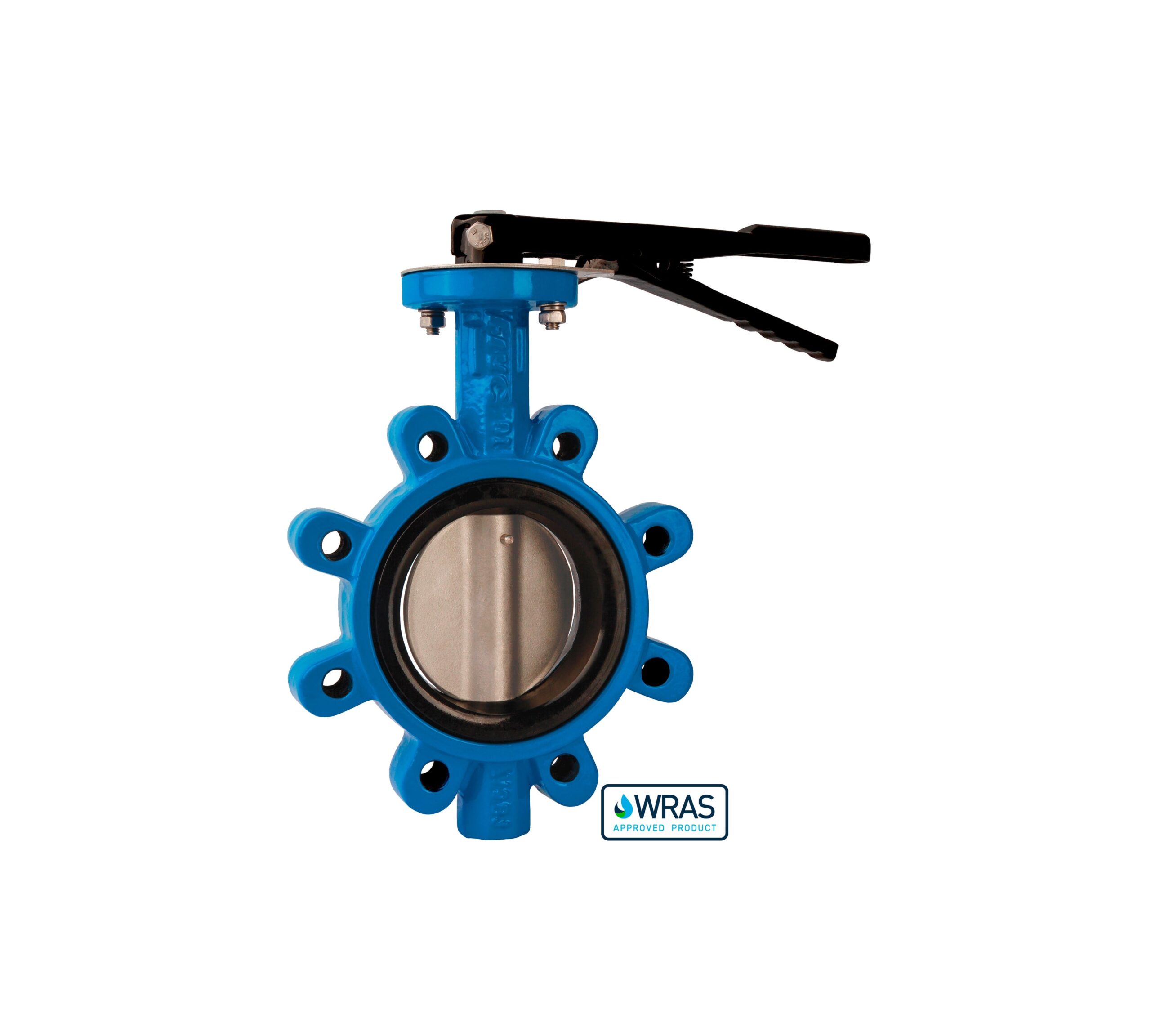

Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Gearbox – Replaceable – w/Pin – WRAS – EN 1092-2

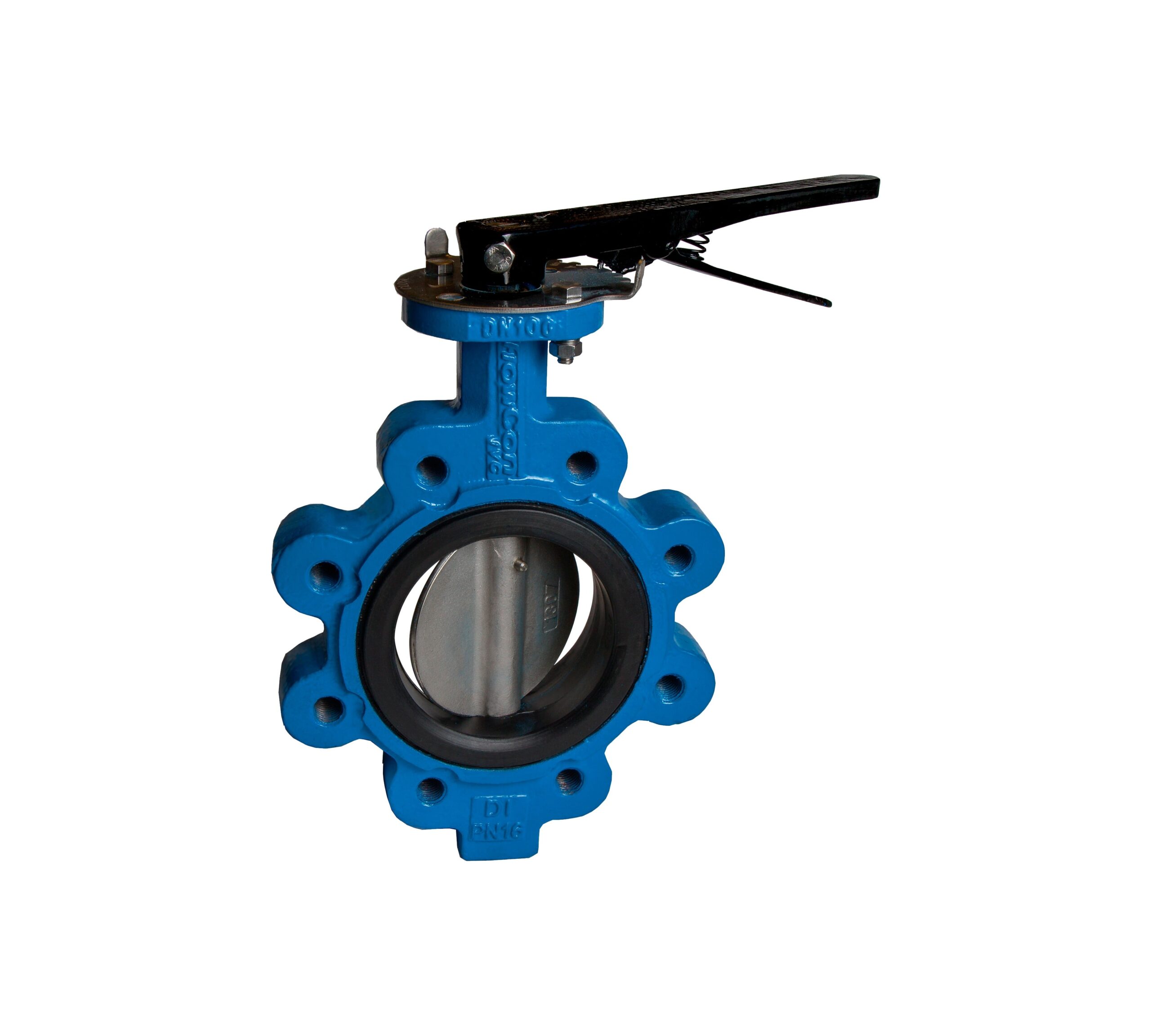

Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Hand lever – Replaceable – w/Pin – WRAS – EN 1092-2
